An Homage to Oracle Warehouse Builder, 25 Years Ahead of Its Time

It’s now apparently twenty-five years since the first release of Oracle Warehouse Builder, Oracle’s all-in-one developer tool for building Oracle Database-hosted data warehouses first released back in 2001.

Since then the world has moved to the cloud, big monolithic ETL suites have decomposed into the modern data stack and everyone’s an analytics engineer working at the command-line using tools such as dbt, git and VSCode.

But many a time over these years I’ve looked back at what the original team behind Warehouse Builder managed to achieve all those years ago, and in-particular the 10gR2 release that as a small footnote in its history I had a small part in helping launch back in 2006.

And so here’s my homage to Oracle Warehouse Builder along with David Allan, Jean-Pierre Dijcks, Paul Narth, Carnot Antonio Romero and everyone else who worked on building these five example features that are still to this day, IMO, twenty-five years ahead of tools in the market today.

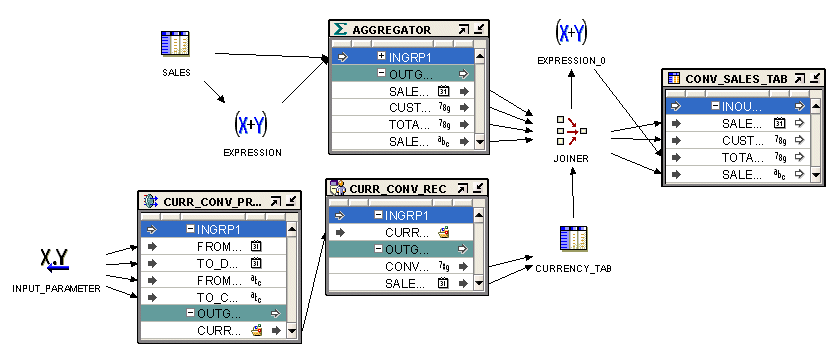

1. Rich Model-Driven Data Pipeline Development

dbt Canvas and Coalesce, for example, now offer graphical mapping editors that provide a visual shell over SQL and a limited set of nodes and predefined SQL patterns.

Oracle Warehouse Builder (OWB) took a much broader and more ambitious approach, providing dozens of genuine transformation operators you could use without writing SQL, covering joins, unions, multilevel aggregators, cached lookups with match rules, pivots, set operators, data quality rules and built-in surrogate key and SCD handling.

OWB started with a central metadata model rather than SQL. You defined tables, dimensions, keys, rules and relationships up front and mappings then referenced this model and inherited its semantics. Transformations described intent, not code.

Instead of writing SQL, you assembled operators that said what should happen, and OWB’s compiler decided how to implement that logic in the most efficient way for the database.

Because the model was authoritative, OWB could auto-generate key handling, merge logic, change detection, audit trails and error management. These were not templates but compiler outputs driven by metadata.

Changes to the model cascaded through mappings with consistent validation. Update a datatype or hierarchy and OWB highlighted every affected object and regenerated code where needed, giving Warehouse Builder data pipelines a level of automation, consistency and semantic awareness that most modern ELT tools still do not match

2. Native Semantic Dimensional Modelling

OWB treated dimensional modelling as a native part of warehouse design. You didn’t just create tables. You defined dimensions with surrogate keys, levels, hierarchies, attributes and SCD rules, and you defined facts with an explicit grain linked to those dimensions.

Because OWB understood this model, it could generate surrogate key logic, change detection, hierarchy materialisation and fact-load code without you writing SQL. Change a level or add an attribute and OWB updated dependent mappings automatically.

Modern tools don’t offer this kind of semantic modelling; in dbt a dimension is just another SQL model and SCDs rely on macros. Hierarchies live in documentation rather than in a compiler that knows what they mean. Coalesce improves the experience with templates and metadata but still expands to SQL rather than reasoning about a dimensional model.

OWB’s advantage was that it let you declare the structure and behaviour of a warehouse while the system generated and validated the implementation, while most modern tools still put the burden of modelling and correctness back on the engineer.

3. Integrated Data quality and Profiling tightly tied to Mappings

OWB let you define data rules, validations, match/merge logic, and quality metrics directly in the mapping metadata. These weren’t bolt-on features but part of the design artefacts that affected code generation and audit tables.

OWB’s graphical Data Profiler analysed source tables for patterns, domains, outliers and invalid values, letting you spot issues before designing any transformations. From those results you could derive data rules that defined what “good” data looked like, and OWB’s Correction Wizard then generated full correction mappings to fix, standardise or route problem rows.

Because data rules, profiling statistics and correction logic all lived in the same design repository, OWB created a single model that tied data quality directly to mappings rather than treating it as a separate workflow.

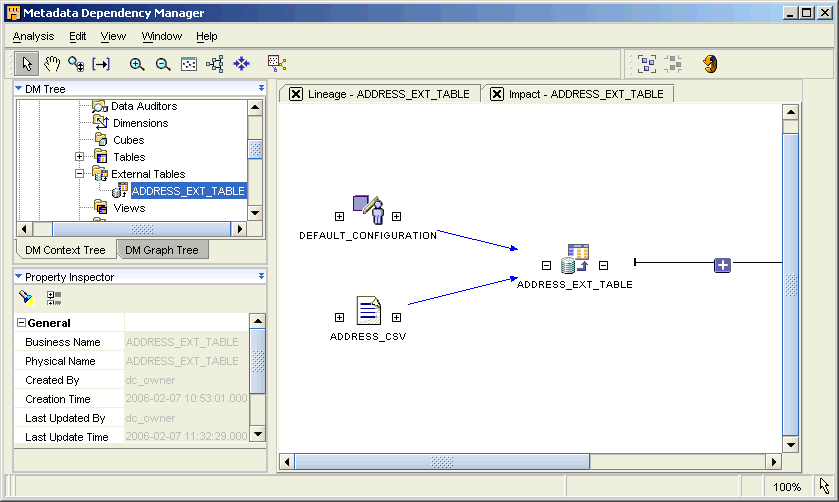

4. End-to-end Metadata Lineage Baked into the Platform

Because Warehouse Builder was designed to build Oracle data warehouses that often sourced from Oracle applications and presented data to users using Oracle BI tools, it could maintain a unified metadata repository that tracked every object you designed, giving you full lineage from source column through transformations to targets without extra setup.

Most modern stacks rely on third-party tools or stitching together metadata from dbt, Fivetran, the warehouse, and BI tools. OWB provided unusually deep lineage and impact analysis because every object in a project lived in a single, strongly typed metadata repository.

When you built a mapping OWB recorded not just column-to-column links but the semantic operations applied along the way, giving you the ability to trace any attribute back through every transformation step to its source tables, including lookup paths, surrogate key logic, SCD rules and data-quality corrections.

This same engine let you run impact analysis in the opposite direction, showing which mappings, downstream tables or reports would be affected if a source column changed. Because this logic operated on the design metadata rather than parsing SQL text, lineage was accurate and consistent even when complex transformations or multi-step expressions were involved.

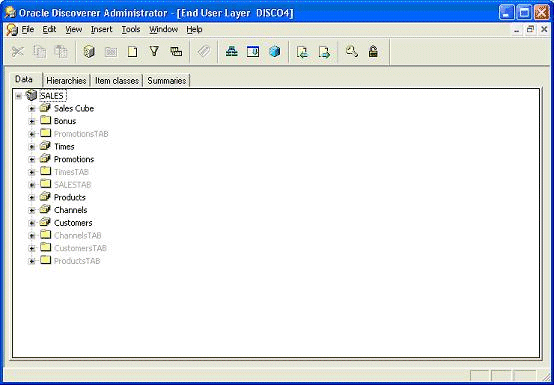

5. Tight Integration with Oracle’s BI Tools

That same metadata model fed directly into Oracle’s BI tools such as Discover and Oracle BI Enterprise Edition. OWB could publish conformed dimensions, fact tables, hierarchies and even business-friendly item names into Oracle’s BI tools, so analysts saw a curated semantic model rather than raw warehouse structures.

Because both tools operated on structured metadata rather than SQL scraping, changes in Warehouse Builder could be propagated into the BI tool semantic layer more reliably, supporting consistent lineage and impact analysis and making those BI tools effectively an extension of the same governed metadata environment.

LookML captures business logic, joins and metrics but it doesn’t inherit transformation semantics from BigQuery or Dataform pipelines, nor do BigQuery or Dataform expose transformation lineage in a way Looker consumes by default.

Cube’s semantic layer sync is a step toward tighter integration, but it is still a very different model from the end-to-end metadata flow OWB delivered. Cube can now push parts of its semantic model into downstream tools so measures, dimensions and joins appear natively in environments like Looker, Mode or Hex but it doesn’t provide a single metadata chain from source systems through transformations into analytics.

So … Why Aren’t We Using Warehouse Builder Today?

Which does of course beg the question, if Warehouse Builder was so good, why aren’t we still using it today?

Well despite all of those ahead-of-its time features, if you ask anyone who used OWB back in the day and now works with modern, cloud-based data stack tools (i.e. myself and my old friend Stewart Bryson), we’d also tell you how much of a pain in the a** sometimes OWB was to develop with.

• The heavyweight Java thick client meant slow startup, clunky UI interactions and frequent lockups on large projects
• Mapping compilation was opaque and could fail deep in the code generator with hard to diagnose errors
• Version control was awkward because metadata lived in a central database repository rather than files you could diff or branch; remember git hadn’t even been invented then and with Oracle, everything got stored in an Oracle Database
• Deployment across environments relied on control centers and location mappings that often drifted or broke, and extensibility required PL/SQL and custom bindings which made anything beyond the built-ins feel brittle and hard to maintain

And in the end, Warehouse Builder fell-out of favour because Oracle-only went out-of-fashion and then Oracle Corp bought another, almost identical tool that was however more cross-platform (but also more French) and then the two tools got combined into a Frankenstein’s monster that did everything the old tools did but nobody understood how it worked any more and then Oracle killed it.

Then the cloud happened, Oracle became the new IBM and all the cool kids rediscovered ELT through Redshift and the open-source dbt (“Data Build Tool”), while us old-timers finally got to do our data warehousing with proper git-based version control, re-implemented some old OWB features ourselves and pointed out in keynotes when we saw features being released that we first saw in OWB more than twenty years ago.
